Wagon Wheel Cleaner

At the Missenden Abbey residential courses in 2017/18, I ran brainstorming sessions on ways to clean wagon and carriage wheels, especially for railways where a considerable mileage is covered.

From the first brainstorming session, a summary document was produced. Subsequent testing of the methods resulted in two front-runners: a method for running a whole train over a thin absorbent cloth soaked in a solvent such as IPA, and a design for a motorised wheel cleaner where the wheels on one side are turned and the wheels the other side bear on a brass brush for cleaning.

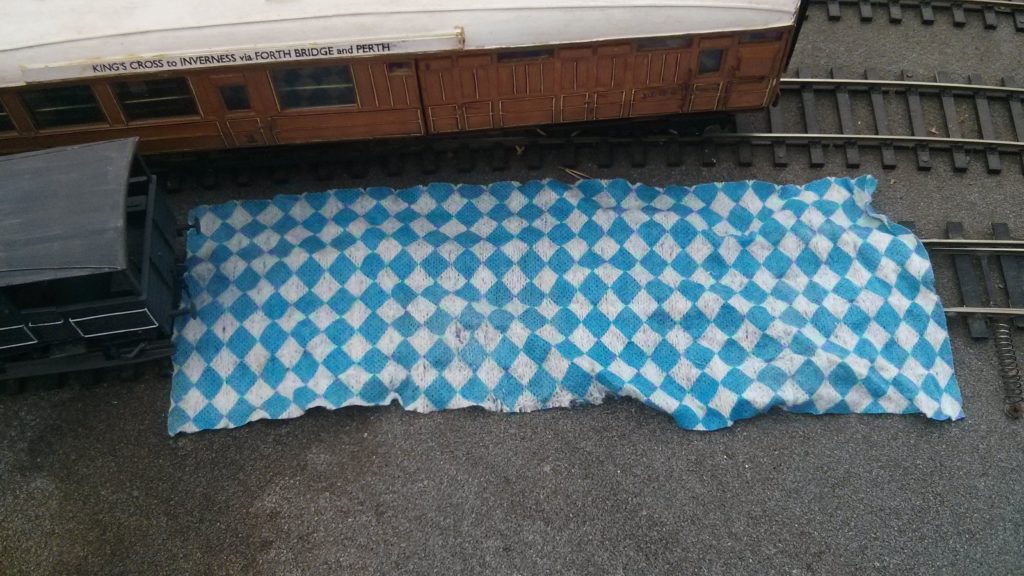

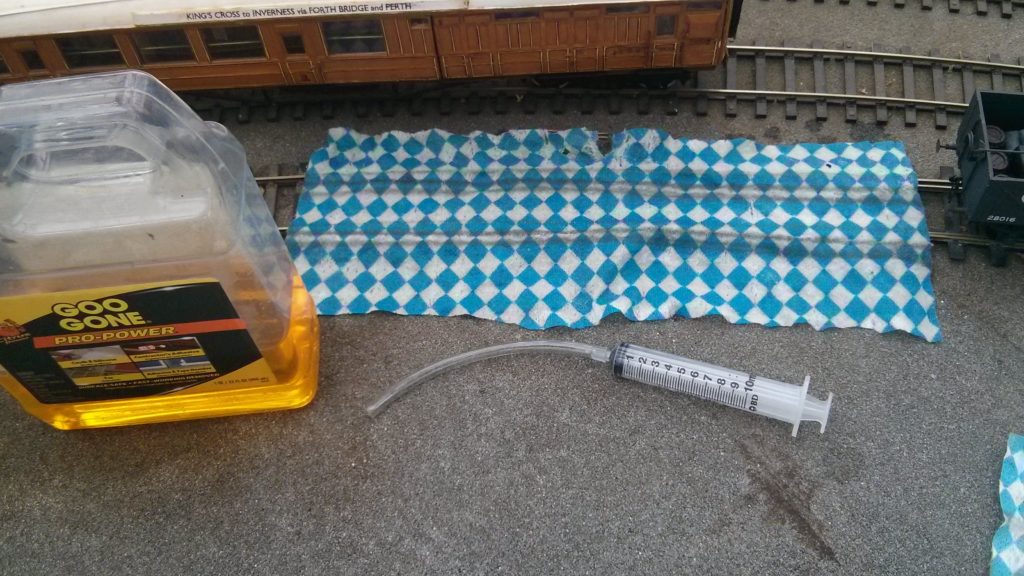

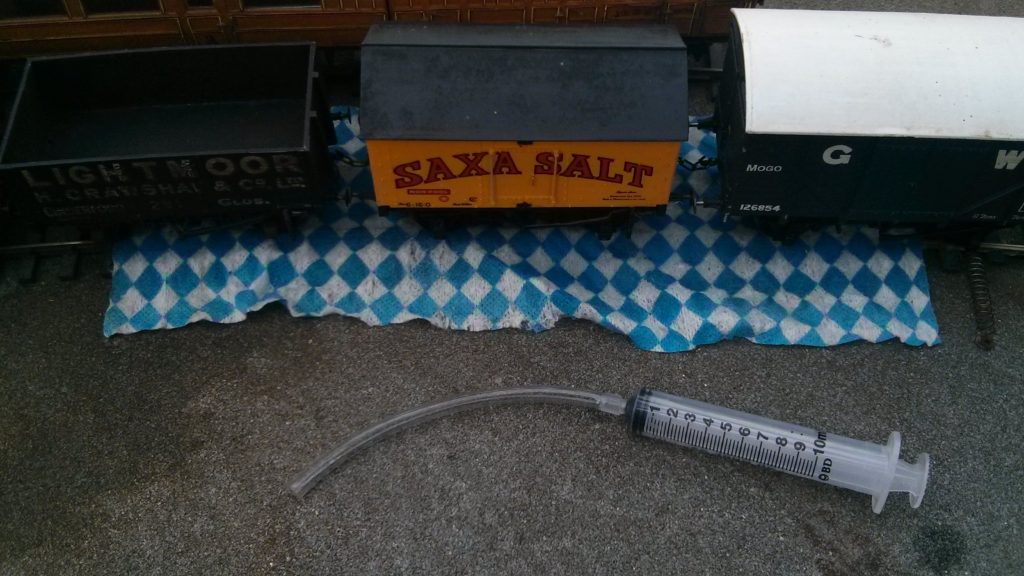

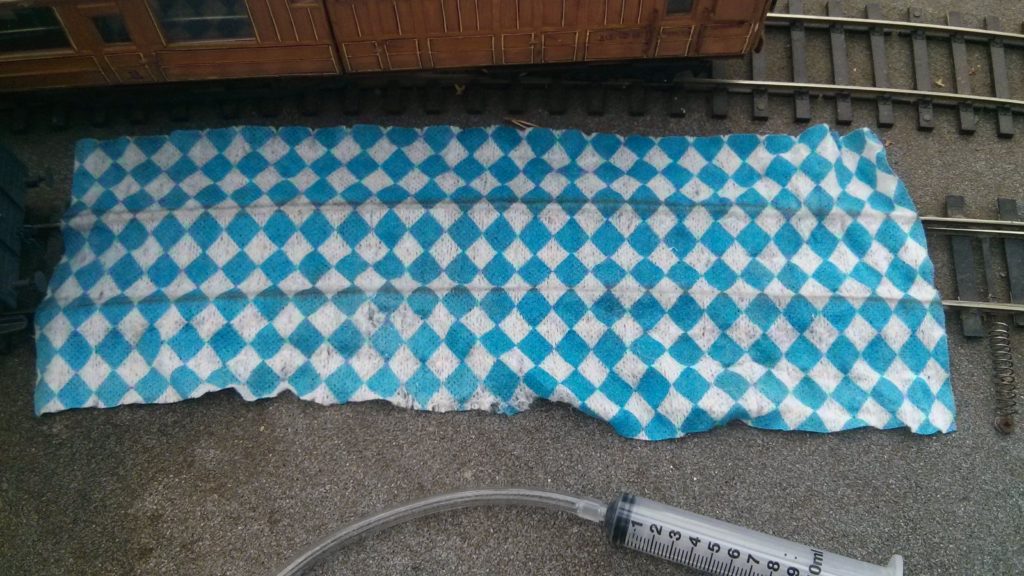

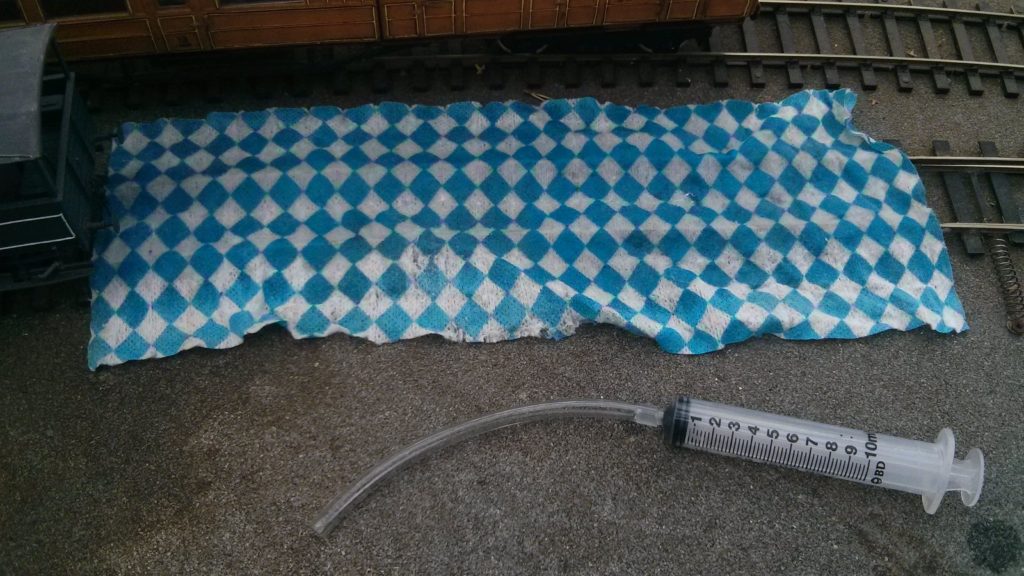

Solvent-soaked cloth method

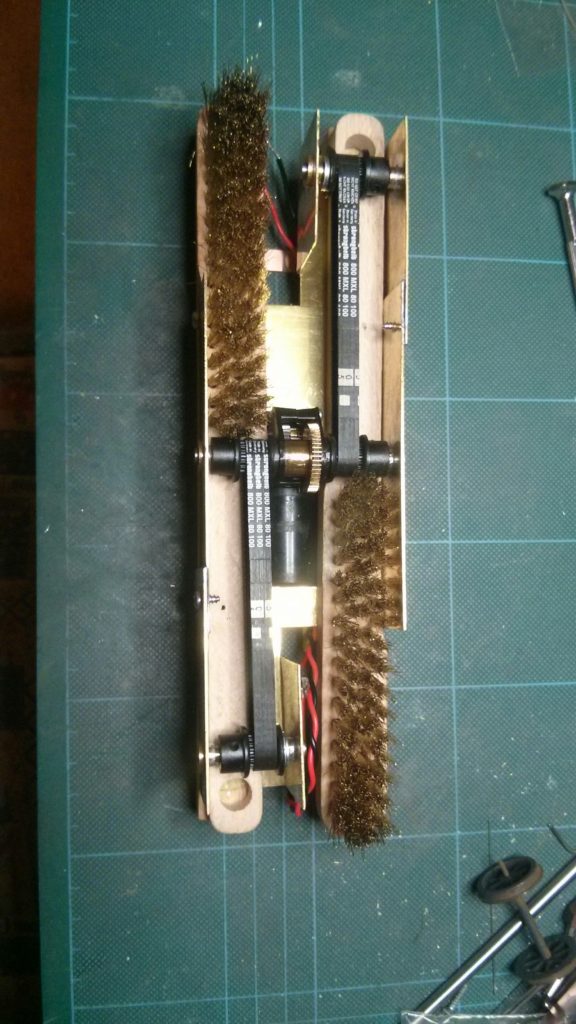

Motorised Wagon Wheel Cleaner


The design was aimed at being able to clean the wheels on both sides of a wagon without having to turn it and preferably keeping it in-line with the tracks.

  • Using a rubber toothed belt to drive both wheels on one side, the other wheels would rub on a brass brush.
  • A second belt and brush but swapped over, would clean the other wheels by just moving the wagon along to the second belt.
  • Power for the motor was to be taken from the track by fitting copper-clad collector strips under the device.
  • In this case, power was provided by a discarded O gauge motor and gearbox, which resulted in 3/16″ axles and bearings.

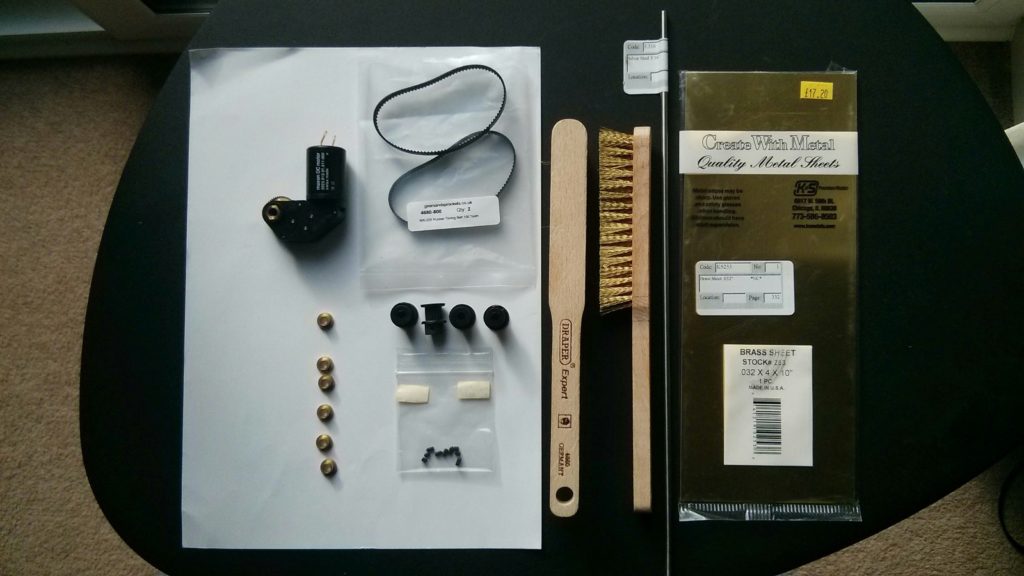

  • Toothed belts and nylon pulleys were purchased and the pulleys drilled to 3/16″ and grub screws fitted.
  • Draper brushes were purchased.
  • A single 4″ x 10″ sheet of 0.032″ thick brass was purchased, drilled, cut and folded up to form a rigid container.
  • Three sub-assemblies were used with bolted joints to allow adjustment for tensioning of the belts before soldering up.

Production Prototype

This version retained the requirement not to turn the wagon, but abandoned the idea of keeping the wagon in line with the track, in order to reduce costs. Additional features, suggested at the Missenden discussion in Oct 2018, were:

  • to cater for 4 mm and 7 mm by using wider brushes mounted closer to the belt and
  • to have a wider belt so positioning of the wheels is not so critical.

The resulting design had the following features:

  • A single belt drive with brushes mounted on both sides of it.
  • A low-cost motor and gearbox.
  • An etched-brass kit for forming the supporting structure.
  • 4 mm shafts as standard

An artist’s impression of the new production prototype…

Production prototype etch
